Double Circuit Angle Bracket

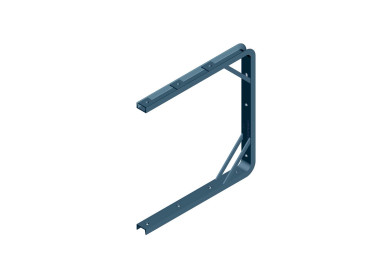

The Double Circuit Angle Bracket provides a streamline option for dual circuit application on a single pole. Designed for use on circuit voltages up to 35 kV, the bracket is an effective use of space and hardware providing a cost-effective design. The bracket is ideally suited to be used with INSULIGN® Tie Top Insulators with Coated Ties or INSULIGN Vise Top Polymer Insulators. The brackets are interchangeable with other manufacturers' spacer cable systems.

  • Keeps conductor spacing close for narrow corridors

  • Center mounting hole doubles as mount for the Angle Messenger Clamp

  • Pole mounting is achieved by using either 5/8" or 3/4" double arming or through bolts (not included)

  • Double circuit angle capabilities in one bracket

  • Provisional ground lug hole

Product Information

Double Circuit Angle Brackets - Catalog Pages



Catalog Number System Voltage Minimum Yield Load Weight Material
V1 V2 lb
lb
ABD-35 up to 35 kV 1500 1500 46.5 Galvanized Steel
