INSULIGN® Polymer Insulator - White Primary Neutral

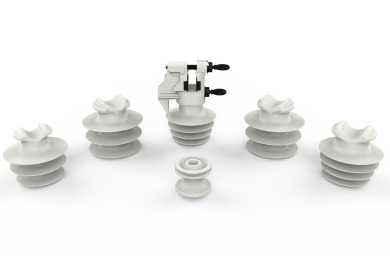

The INSULIGN Polymer Insulator White Primary Neutral are manufactured from a proprietary high-density, polyethylene-based, white compound having a dielectric constant that is similar to (and compatible with) polyethylene covered overhead conductor. The insulators are designed to meet the appropriate dimensional, electrical and mechanical requirements of the applicable ANSI C29.3 and C29.5 insulator standards but designed to be used with the system neutral mounted in the standard neutral position or mounted on a crossarm with the phase conductors.

The bright white color is ideal for differentiating the neutral from the phase conductors and it makes the insulator easily visible from the ground and in low-light conditions.

  • Tie top designs are ideal for use with PLP ties

  • Superior moisture and contamination shedding

  • UV-stabilized material

  • High-impact resistance

  • Lightweight design

  • ANSI-compliant head dimensions

  • Dramatically reduces abrasion damage to conductor

  • 100% recyclable

  • Bright white makes the neutral clearly identifiable from the ground

Product Information

INSULIGN Polymer Insulators White Primary Neutral - Catalog Pages



Installation Instructions

SP-3245 (INSULIGN Polymer Insulator Tie Top Pin Type)

Catalog Number ANSI Class1 Description Neck Type Mounting Pin
Diameter		 Units per Carton Weight per Carton
in lb
Spool

IP-53-2W

 53-2

Polymer Spool Insulator -White, 1-3/4 Neck Diameter

A-Neck

 N/A  48   16
15 kV

IP-15-CW

 55-32

15kV Polymer Insulator - White Tie Top Pin Type

 C-Neck 1  18 20
IP-15-FW 55-42 15kV Polymer Insulator - White Tie Top Pin Type F-Neck 1  25

IP-15-PVTUW

 55-3, 55-4

15kV Polymer Insulator - White Pivot Vise Top Pin Type

 N/A  1  39
 25 kV
IP-25-F1W 55-52   25kV Polymer Insulator - White Tie Top Pin Type

F-Neck

 1 18 28
IP-25-F2W 55-52   25kV Polymer Insulator - White Tie Top Pin Type F-Neck 1-3/8  27

 1 Insulators meet the electrical criteria defi ned in the application specification

 2 Nominal ANSI C29.5 or C29.6 Class designation - These ANSI specifications are for Wet Processed Porcelain
