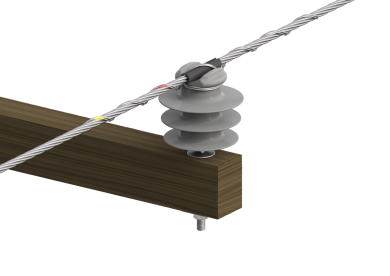

INSULIGN® Polymer Insulator - Tie Top Pin Type (High Temperature)

The INSULIGN High Temperature (HT) Tie Top Pin Type Polymer Insulators, constructed of a proprietary High Temperature HDPE formula, are designed for use in systems that have continuous operating temperatures up to 150˚C. Like PLP's standard INSULIGN Polymer Insulators, the HT versions meet the dimensional, electrical, and mechanical requirements as defined in ANSI C29.5 and C29.6 standards for Classes 55-3, 55-4, 55-5, 55-6, 55-7, and 56-1. These insulators also meet the new ANSI C29.15 standard for polyethylene tie top pin type insulators.

  • Continuous operation up to 150 degrees C

  • Tie top designs are ideal for use with PLP formed wire ties

  • Ideal for use with Tree Wire construction

  • Matched dielectric properties

  • Superior moisture and contamination shedding

  • UV-stabilized material

  • High-impact resistance

  • Lightweight design

  • ANSI-compliant head dimensions

  • Dramatically reduces abrasion damage to conductor

  • Ideal for jumpers and stinger wires

  • 100% recyclable

  • 1” or 1-3/8” pins

Product Information

INSULIGN High Temperature (HT) Polymer Insulators Tie Top Pin Type - Catalog Pages



Installation Instructions

SP-3245 (INSULIGN Polymer Insulator Tie Top Pin Type)

Catalog Number ANSI Class* Application Mounting Pin Diameter Insulator Weight Units per Carton Weight per Carton
in  lb lb
15 kV
IP-15HT-C  55-3  C Neck Tie Top  1  0.9  18   24
 IP-15HT-F 55-4  F Neck Tie Top  1  1.2  24
25 kV
IP-25HT-F1  55-5  F Neck Tie Top  1  1.3  18 35
IP-25HT-F2  55-51  F Neck Tie Top 1.375  1.3  35.5
IP-25HT-J1   56-11  J Neck Tie Top  1  2  37
IP-25HT-J2  56-1  J Neck Tie Top  1.375  1.96  36
 35 kV
IP-35HT-F1  55-61   F Neck Tie Top  1  2.8 12 37
IP-35HT-F2  55-71   F Neck Tie Top  1.375  2.8  36
IP-35HT-J1  55-6  J Neck Tie Top 1  2.42  33
IP-35HT-J2  55-7  J Neck Tie Top 1.375  2.46   32

NOTE: *Nominal ANSI C29.5 or C29.6 Class designation - These ANSI specifications are for Wet Processed Porcelain

NOTE: 1Meets the electrical requirements of the ANSI Class designation but a physical characteristic differs from the specification
