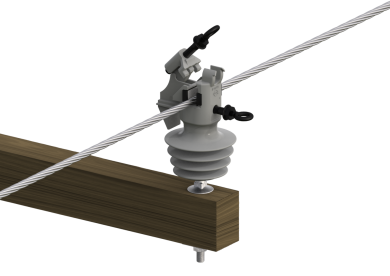

INSULIGN® Polymer Insulator - Pivot Vise Top Pin Type

The Patented INSULIGN Pivot Vise Top Pin Type Polymer Insulator utilizes a unique plastic clamp mechanism and nylon torque bolts to secure the conductor. The pivoting top bolt with captured hardware eliminates the need for removal when installing the conductor or stringing tool in the insulator.

The nylon torque bolt with a break-away ring is designed to ensure that the optimal holding force is applied while providing for fast conductor clamping. Specific conductor defi ned inserts are off ered for aluminum, copper, and jacketed conductors. PLP also offers patented universal inserts and ceramic inserts which are compatible with all bare conductors.

It is recommended that the utility determines the suitability of the Pivot Vise Top Polymer Insulator for their application before installation.

• No loose hardware, drastically reducing installation time

• Superior moisture and contamination shedding

• High-impact resistance material

• UV-stabilized material

• Lightweight design

• Ideal for jumpers and stinger wires

• 100% recyclable

• 1” or 1-3/8” pins

• Universal insert design1 to reduce the number of different insulators required

• Ideal for use with shotgun sticks

• Vise Top Stringing Tool available

• Pivot Top version features no loose hardware, reducing installation time



1 Insulators meet the electrical criteria defined in the applicable specification

Product Information

INSULIGN® Polymer Insulator Pivot Vise Top Pin Type

Installation Instructions

SP-3032 (INSULIGN Polymer Insulator - Pivot Vise Top Pin Type)

Catalog Number ANSI Class1 Insert Application Mounting Pin Diameter Insulator Weight Units per Carton Weight per Carton
in  lb lb
15 kV
IP-15-PVTU  55-3, 55-4  Universal2 All Conductor Applications 1 2 18   39
 IP-15-PVTC Ceramic Aluminum & Copper
 IP-15-PVTM Aluminum Aluminum
 IP-15-PVTM-B Bronze Copper
 IP-15-PVTN Nylon Jacketed Conductors
25 kV
IP-25-PVTU1  55-5  Universal2 All Conductor Applications 1  2.3 12 30
IP-25-PVTU2 1-3/8
IP-25-PVTC1    Ceramic  Aluminum & Copper 1  2.3 30
IP-25-PVTC2 Ceramic Aluminum & Copper 1-3/8 2.3 30
IP-25-PVTM1 Aluminum Aluminum  1 2.2 29
 IP-25-PVTM2 Aluminum Aluminum  1-3/8 2.2 29
IP-25-PVTM1-B  Bronze Copper  1 2.2 29
 IP-25-PVTM2-B Bronze Copper 1-3/8  2.2 29
IP-25-PVTN1  Nylon Jacketed Conductors  1 2.3 30
IP-25-PVTN2   Nylon Jacketed Conductors 1-3/8  2.3 30
 35 kV
IP-35-PVTU1 55-6   Universal2   All Conductor Applications 1  3.2 12 41
IP-35-PVTU2  55-7   1-3/8
IP-35-PVTC1 55-6  Ceramic   Aluminum & Copper 1
IP-35-PVTC2  55-7  Ceramic Aluminum & Copper 1-3/8
IP-35-PVTM1 55-6   Aluminum Aluminum  1
IP-35-PVTM2 55-7  Aluminum Aluminum  1-3/8
IP-35-PVTM1-B 55-6   Bronze Copper  1
IP-35-PVTM2-B 55-7  Bronze Copper  1-3/8
IP-35-PVTN1  55-6   Nylon Jacketed Conductors  1
IP-35-PVTN2  55-7  Nylon Jacketed Conductors  1-3/8

NOTE: 1Insulators meet the electrical criteria defined in the applicable specification

            2Patented

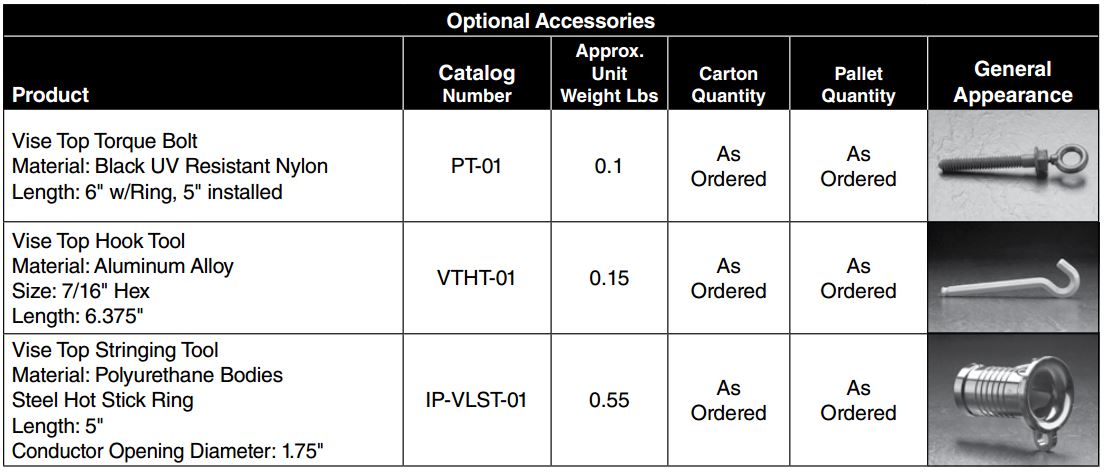

Polymer Insulator Accessories
