COYOTE® 6" Pedestal
The COYOTE 6" Pedestal provides easy customization options to adapt to your fiber or copper splicing needs at each location in your network. Each pedestal is pre-assembled and can be configured to accept various fiber optic splice tray types, fiber or copper terminals, fiber cross-connect bulkheads, or management brackets for copper splices. In addition, the organizer can be removed and a slotted metal back plane can be inserted into the base to attach fiber closures and cabinets to provide additional protection for your splices. The versatility of the COYOTE Pedestal allows you to create the network you desire.
-

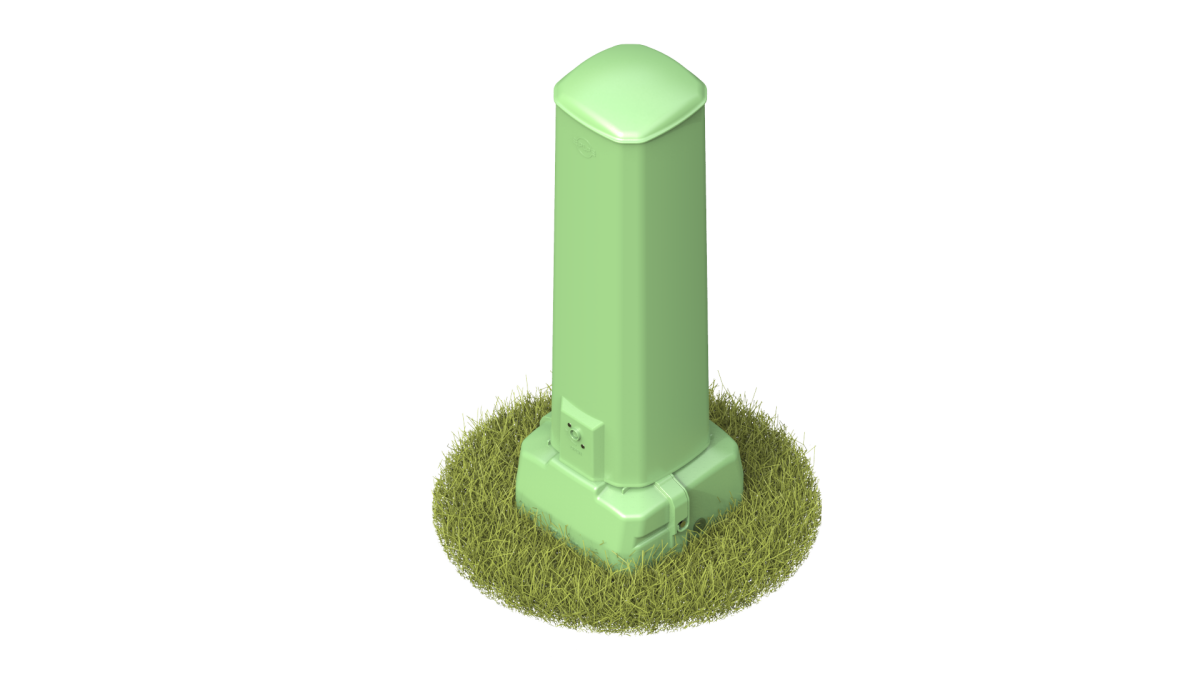

Each pedestal is pre-assembled with a base, automatic locking cover, and internal organizer with a grounding busbar
-
Cover and base are manufactured out of a UV/FR stabilized polycarbonate that will withstand weathering
-
Split base design for easy installation around pre-installed duct/cables and replacement of existing pedestals
-
Automatic cover locking system (patent pending)
-
Grounding busbar isolates connections and is equipped with a ground wire terminal (#4 – #10)
-
Organizer can be configured for various fiber and copper applications - splicing, terminals, and cross-connect applications
-

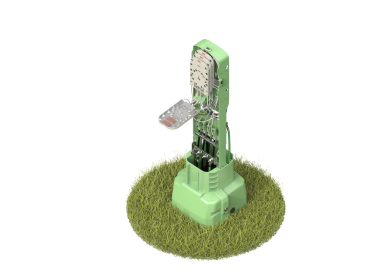

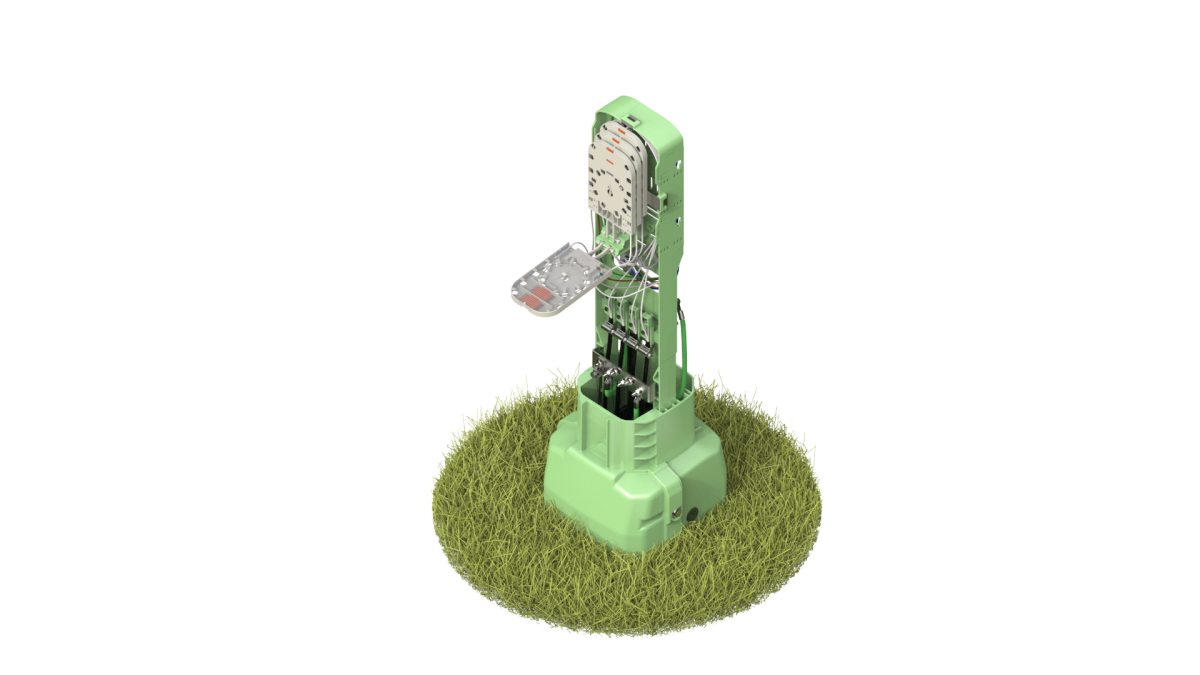

Organizer can accommodate COYOTE Flip Trays
-
All fasteners are constructed of stainless steel to prohibit corrosion and can be secured or loosened with common tools (216 can wrench, 1/4" nut driver, or Philips screwdriver)
-
Designed and tested in accordance with GR-13-CORE requirements
Sales Material
COYOTE 6" Pedestal Sell Sheet - CO-SS-1342
Installation Instructions
SP3744 (COYOTE 6" Pedestal with Metal Back Plane)
SP3745 (COYOTE 6" Pedestal with Universal Organizer)
SP3747 (COYOTE 6" Pedestal Flip Tray Installation)
| COYOTE 6" Pedestal with Universal Organizer |
|
| Catalog Number | Description |
| COYPED6-UOS | COYOTE 6" Pedestal, Universal Organizer with Anchor Stake - Includes (1) 6" Pedestal, Universal Organizer with Busbar and Split Base, (1) Dome, (1) Small Parts Bag, (1) Cable Retention Kit, and (1) 32" Anchor Stake with Attachment Hardware |
| COYPED6-UON | COYOTE 6" Pedestal, Universal Organizer without Anchor Stake - Includes (1) 6" Pedestal, Universal Organizer with Busbar and Split Base, (1) Dome, (1) Small Parts Bag, (1) Cable Retention Kit |
| COYOTE 6" Pedestal with Metal Back Plane |
|
| Catalog Number | Description |
|
COYPED6-MBPS |
COYOTE 6" Pedestal, Metal Back Plane with Anchor Stake – Includes (1) 6" Pedestal, Metal Back Plane and Split Base, (1) Dome, and (1) 32" Anchor Stake with Attachment Hardware
|
|
COYPED6-MBPN |
COYOTE 6" Pedestal, Metal Back Plane without Anchor Stake – Includes (1) 6" Pedestal, Metal Back Plane and Split Base, and (1) Dome
|
