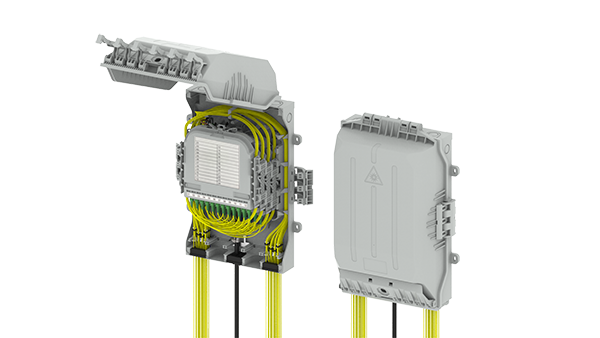

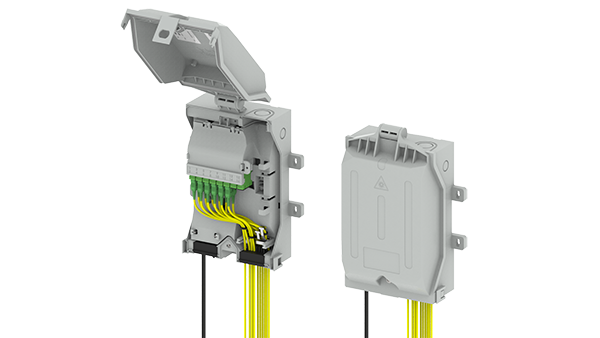

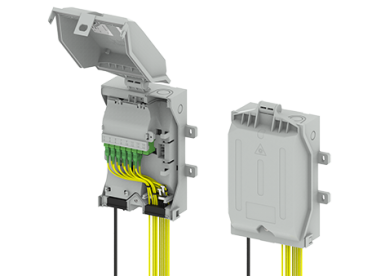

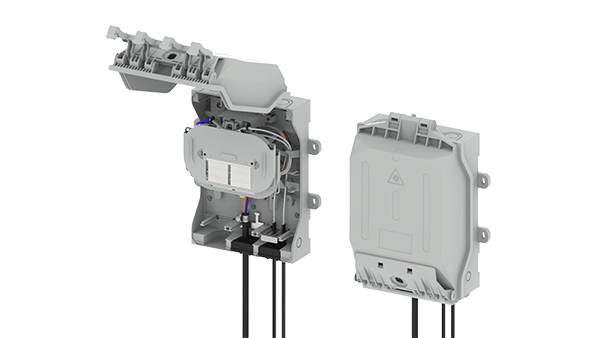

COYOTE® DEN Wall Box
COYOTE DEN Wall Boxes are designed for indoor or outdoor fiber splice points commonly found at multi-dwelling units or utility poles that require the distribution of multiple drop cables or patch cords. The COYOTE DEN units are configured with fiber organizers for either direct splice or cross-connect applications and incorporate a flip tray management system to help organize customer connections. These durable wall boxes utilize a cable grommet system and an integrated cover gasket to prevent water and dust ingress into the closure to ensure the protection of the critical network connections located inside them.
• Available in three different sizes (DEN2, DEN3, and DEN5) for either direct splice or cross-connect applications
• Can be directly mounted to an interior or exterior wall or banded to a pole
• Hinged cover that secures to the base with either locking tabs or hinging latches
• Optional lock for added security of the cover to the base
• Flexible grommet sealing system supports round and flat cable profiles
• Organizers are designed to accept flip trays which allow easy access to fibers and slack buffer tubes
• Flip trays store single fusion or PLC splitters
• Cross-connect organizer in the largest wall box size (DEN5) utilizes a flip cassette system for better management of patch cord routing and fiber connections
• Cross-connect organizers are compatible with SC or LC adapters (APC or UPC)
• Grommets, splice trays/cassettes, and organizer are supplied with each wall box
• Designed and tested in accordance with IEC 61753-1 Category A and rated to IP-65 requirements
Product Information
Installation Instructions
| COYOTE DEN2, 3, and 5 Kit Contents |
|
| Catalog Number | Description |
|
COYDEN2-SPL |
COYOTE DEN2 Wall Box with Direct Splice Organizer – Includes (2) COYOTE DEN 24 CT Low-Profile Flip Splice Tray Kits, (1) 4-Hole Grommet Kit: (2 Holes) 0.38" – 0.46" (9.7 – 11.7 mm) & (2 Holes) 0.46" – 0.51" (11.7 – 13.0 mm), (1) 24-Hole Grommet Kit: (24 Holes) 0.07" – 0.12" (1.8 – 3.0 mm), & (1) Small Parts Bag |
|
COYDEN2-XC |
COYOTE DEN2 Wall Box with Cross-Connect Organizer – Includes (1) COYOTE DEN 24 CT Low-Profile Flip Splice Tray Kits, (1) 4-Hole Grommet Kit: (2 Holes) 0.38" – 0.46" (9.7 – 11.7 mm) & (2 Holes) 0.46" – 0.51" (11.7 – 13.0 mm), (1) 24-Hole Grommet Kit: (24 Holes) 0.07" – 0.12" (1.8 – 3.0 mm), & (1) Small Parts Bag |
|
COYDEN3-SPL |
COYOTE DEN3 Wall Box with Direct Splice Organizer – Includes (4) COYOTE DEN 24 CT Low-Profile Flip Splice Tray Kits, (1) 4-Hole Grommet Kit: (4 Holes) 0.30" – 0.38" (7.6 – 9.7 mm), (1) 4-Hole Grommet Kit: (2 Holes) 0.38" – 0.46" (9.7 – 11.7 mm) & (2 Holes) 0.46" – 0.51" (11.7 – 13.0 mm), (1) 24-Hole Grommet Kit: (24 Holes) 0.07" – 0.12" (1.8 – 3.0 mm), & (1) Small Parts Bag |
|
COYDEN3-XC |
COYOTE DEN3 Wall Box with Cross-Connect Organizer – Includes (2) COYOTE DEN 24 CT Low-Profile Flip Splice Tray Kits, (1) 4-Hole Grommet Kit: (4 Holes) 0.30" – 0.38" (7.6 – 9.7 mm), (1) 4-Hole Grommet Kit: (2 Holes) 0.38" – 0.46" (9.7 – 11.7 mm) & (2 Holes) 0.46" – 0.51" (11.7 – 13.0 mm), (1) 24-Hole Grommet Kit: (24 Holes) 0.07" – 0.12" (1.8 – 3.0 mm), & (1) Small Parts Bag |
|
COYDEN5-SPL |
COYOTE DEN5 Wall Box with Direct Splice Organizer – Includes (4) COYOTE DEN 24 CT Deep Profile Flip Splice Tray Kits, (1) 4-Hole Grommet Kit: (2 Holes) 0.38" – 0.46" (9.7 – 11.7 mm) & (2 Holes) 0.46" – 0.51" (11.7 – 13.0 mm), (1) 24-Hole Grommet Kit: (24 Holes) 0.07" – 0.12" (1.8 – 3.0 mm), & (1) Small Parts Bag |
|
COYDEN5-CSTE2 |
COYOTE DEN5 Wall Box with 2 Cassette Trays – Includes (2) Cassette Splice Location Labels, (2) Cassette Connector Location Labels, (1) 4-Hole Grommet Kit: (2 Holes) 0.38" – 0.46" (9.7 – 11.7 mm) & (2 Holes) 0.46" – 0.51" (11.7 – 13.0 mm), (2) 24-Hole Grommet Kit: (24 Holes) 0.07" – 0.12" (1.8 – 3.0 mm), & (1) Small Parts Bag |
|
COYDEN5-CSTE4 |
COYOTE DEN5 Wall Box with 4 Cassette Trays – Includes (4) Cassette Splice Location Labels,(4) Cassette Connector Location Labels, (1) 4-Hole Grommet Kit: (2 Holes) 0.38" – 0.46" (9.7 – 11.7 mm) & (2 Holes) 0.46" – 0.51" (11.7 – 13.0 mm), (2) 24-Hole Grommet Kit: (24 Holes) 0.07" – 0.12" (1.8 – 3.0 mm), & (1) Small Parts Bag |
| COYOTE DEN Accessories |
|
| Catalog Number | Grommets |
| 80814377 |
24-Hole Grommet 0.07" – 0.12" (1.8 mm – 3.0 mm) |
|
80814378 |
12-Hole Grommet 0.14" – 0.22" (3.6 mm – 5.6 mm) |
|
80814379 |
8-Hole Grommet 0.22" – 0.30" (5.6 mm – 7.6 mm) and Flat Drop |
|
80814380 |
4-Hole Grommet 0.30" – 0.38" (7.6 mm – 9.6 mm) |
|
80814381 |
4-Hole Grommet 0.38" – 0.42" (9.6 mm – 10.6 mm) 0.42" – 0.51" (10.6 mm – 13.0 mm) |
| 8003818 | 8-Hole Grommet Port Adapter 0.120" – 0.200" (3.0 – 5.1 mm) |
| Catalog Number | DEN Splice Tray Accessories |
|
80808187 |
Heat Shrink Splice Protector Kit – Includes (12) 40 mm Single Fusion |
|
8004095 |
Heat Shrink Splice Protector Kit – Includes (50) 40 mm Single Fusion |
|
8003509 |
Heat Shrink Splice Protector Kit – Includes (12) 60 mm Single Fusion |
|
8003717 |
Heat Shrink Splice Protector Kit – Includes (50) 60 mm Single Fusion |
|
8003490 |
Felt Tape Kit – Includes (6) 9" Long Buffer Tube Felt Strips |
| Catalog Number | DEN Cross-Connect Accessories |
| 80813593 | Adapter Kit – Includes (8) SC/APC Simplex Adapters |
|
80813594 |
Adapter Kit – Includes (8) SC/UPC Simplex Adapters |
| 80813595 | Adapter Kit – Includes (8) SC/APC Duplex Adapters |
| 80813596 | Adapter Kit – Includes (8) SC/UPC Duplex Adapters |
|
80813597 |
Adapter Kit – Includes (8) LC/APC Duplex Adapters |
|
80813598 |
Adapter Kit – Includes (8) LC/UPC Duplex Adapters |
|
80813599 |
Adapter Kit – Includes (8) LC/APC Quad Adapters |
|
80813600 |
Adapter Kit – Includes (8) LC/UPC Quad Adapters |
|
800013979 |
Fiber Pigtail Kit – Includes (2) 1.5 m SC/APC 900 µm Color Coded Pigtails
|
|
800014109 |
Fiber Pigtail Kit – Includes (2) 1.5 m SC/UPC 900 µm Color Coded Pigtails
|
|
800013980 |
Fiber Pigtail Kit – Includes (3) 1.5 m SC/APC 900 µm Color Coded Pigtails
|
|
800014110 |
Fiber Pigtail Kit – Includes (3) 1.5 m SC/UPC 900 µm Color Coded Pigtails
|
|
800015055 |
Fiber Pigtail Kit – Includes (4) 1.5 m SC/APC 900 µm Color Coded Pigtails
|
|
80812558 |
Fiber Pigtail Kit – Includes (4) 1.5 m SC/UPC 900 µm Color Coded Pigtails
|
|
80812983 |
Fiber Pigtail Kit – Includes (2) 1.5 m LC/APC 900 µm Color Coded Pigtails
|
|
80812985 |
Fiber Pigtail Kit – Includes (2) 1.5 m LC/UPC 900 µm Color Coded Pigtails
|
|
80812559 |
Fiber Pigtail Kit – Includes (4) 1.5 m LC/APC 900 µm Color Coded Pigtails
|
|
80812560 |
Fiber Pigtail Kit – Includes (4) 1.5 m LC/UPC 900 µm Color Coded Pigtails
|
|
COYSP1X21
|
COYOTE Bare Fiber Splitter – 1x2 |
| COYSP1X41 | COYOTE Bare Fiber Splitter – 1x4 |
| COYSP1X81 | COYOTE Bare Fiber Splitter – 1x8 |
|
COYSP1X161
|
COYOTE Bare Fiber Splitter – 1x16 |
| COYSP1X321 | COYOTE Bare Fiber Splitter – 1x32 |
|
COYSP1X2SCA
|
COYOTE Pre-Connectorized Splitter – 1x2 SC/APC |
| COYSP1X4SCA | COYOTE Pre-Connectorized Splitter – 1x4 SC/APC |
| COYSP1X8SCA | COYOTE Pre-Connectorized Splitter – 1x8 SC/APC |
1 Add Suffi x: -S for 250 μm Output Legs
