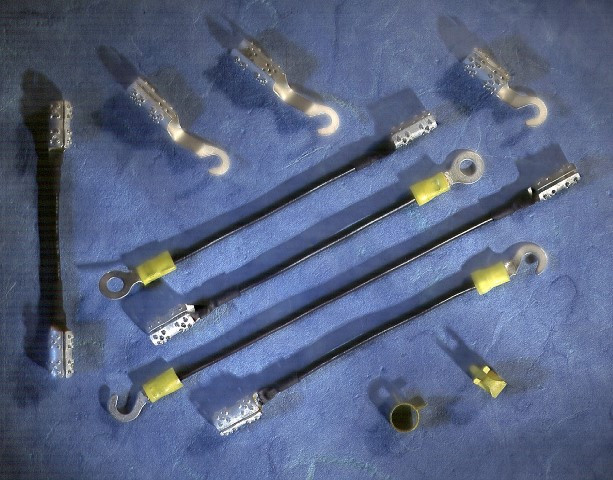

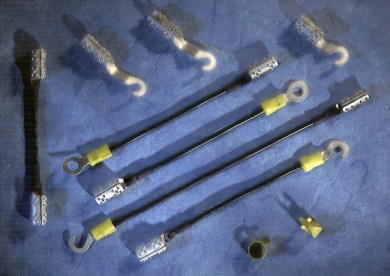

SERVI-BOND™ Shield Connector

The SERVI-BOND Shield Connector is designed to ensure shield continuity to a point of ground for buried telephone service wires.

  • Easily installed and requires no special tools.

Application Procedures

SP-2691-4 (SERVI-BOND Shield Connector)



Catalog Pages

SERVI-BOND Shield Connector - Catalog

 Catalog Number

in (mm)

 Spring Clamp Color Code

Maximum Service Wire Diameter

in (mm)

  Description
 8000735
(short neck)		 Silver 0.30 (8) 2-Pair or 3-Pair (Armored and Non-Armored)
 8000736
(short neck)		 Yellow 0.36 (9) 5-Pair or 6-Pair (Armored and Non-Armored)
Black 0.41 (10) 5-Pair or 6-Pair
(Armored)
8000737
4.5" (114) harness (floating hook terminal)		  Silver 0.30 (8) 2-Pair or 3-Pair (Armored and Non-Armored)
8000738
4.5" (114) harness (floating hook terminal)  		  Yellow  0.36 (9)  5-Pair or 6-Pair (Armored and Non-Armored)
Black  0.41 (10)  5-Pair or 6-Pair (Armored and Non-Armored)

8000739*
7" (177) harness (floating hook terminal)

*REA Accepted

  Silver  0.30 (8)  2-Pair or 3-Pair (Armored and Non-Armored)

 8000744*
7" (177) harness (floating hook terminal)

*REA Accepted

  Yellow 0.36 (9)  5-Pair or 6-Pair (Armored and Non-Armored)
Black  0.41 (10)   5-Pair or 6-Pair (Armored and Non-Armored)
 8000746
14" (365) harness (floating hook terminal)   		 Silver   0.30 (8)  2-Pair or 3-Pair (Armored and Non-Armored)
8000748
2.75" (69) harness (floating hook terminal) 		  Black  0.41 (10) 5-Pair or 6-Pair (Armored and Non-Armored)
 8000750
4.5" (114) harness (floating hook terminal)   		 Yellow  0.36 (9)  5-Pair or 6-Pair
Black   0.41 (10)  5-Pair or 6-Pair (Armored and Non-Armored)
 8000752
4.5" (114) harness (floating hook terminal)   		  Aluminum   0.56 (14) 12-Pair (Armored and Non-Armored)
