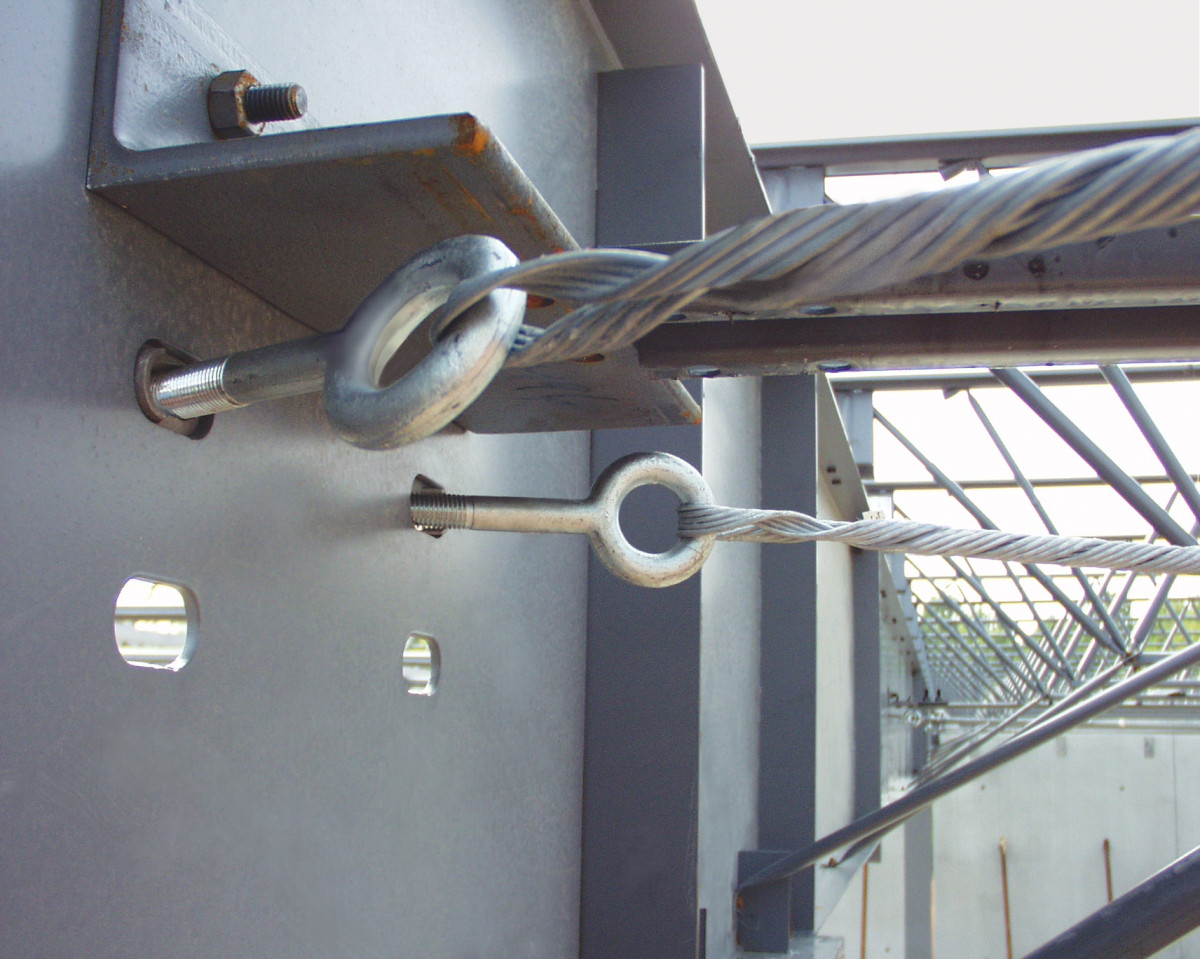

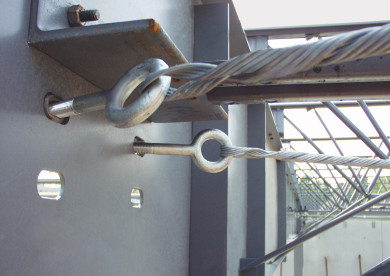

BRACE-GRIP® Dead-End for Strand Systems
The BRACE-GRIP System consists of a helically formed dead-end that develops 100 percent or more of the published rated breaking strength of the strand for which it is designed.
- Provides 100% of the published rated breaking strength of the strand
- Lighter, easier to handle
- Stranded steel cable offers greater tensile strength then an equivilent sized threaded rod
- Reduces costs by improving installation time
- Eliminates the need for costly machinery
- Easily applied - no special tools needed
- No cutting or preparation - it arrives ready to install
- Accommodates 1/4" through 3/4" diameter strand
Application Procedures
SP2701 (BRACE-GRIP® Dead-End for Strand)
Sales Materials
BRACE-GRIP® Dead-End for Strand - Sell Sheet
| Catalog Number |
Strand Size in (mm) |
Brace-Eye Catalog Number |
RBS (lbs) |
| BRG-2580 | 1/4 (6.3) | 00060110 | 6,650 |
| BRG-2582 | 5/16 (7.9) | 00060110 | 11,200 |
| BRG-2583 | 3/8 (9.5) | 00060110 | 15,400 |
| BRG-2584 | 7/16 (11.1) | 00060112 | 20,800 |
| BRG-2585 | 1/2 (12.7) | 00060112 | 26,900 |
| BRG-2586 | 9/16 (14.2) | N/A | 35,000 |
| BRG-1587 | 5/8 (15.8) | N/A | 42,400 |
| BRG-4588 | 3/4 (19.0) | N/A | 58,300 |
