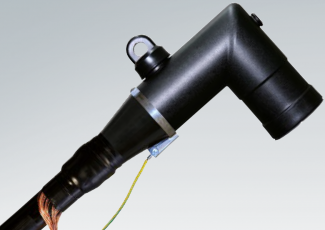

400A Elbow Separable Connector

Cellplux elbow separable connectors CWS are suitable for connecting all polymeric-insulated 1-core cables (PVC, PE, XLPE, EPR), with different types of semi-conductive layers (graphite-coated or strippable) and screen design (wire or tape screen), to switching equipment and transformers having an outer cone system type B, up to maximum network voltage of 36 kV in accordance with EN 50180 and EN 50181.

Characteristics

• With capacitive measuring point
• Individually tested
• Outer semi-conductive layer made of semi-conductive EPDM provides protection from exposed electrical parts
• Cable sheath insulation fault test maybe performed while under voltage
• For copper and aluminium conductors
• Quick, safe and easy assembly
• Suitable for a wide range of applications due to integrated screw cable lug

Application/Suitability

• Indoor
